Contec ECG90A ECG Machine 3 Channel 12 Leads Electrocardiograph with Printer and PC Software - Φορητός τρικάναλος ηλεκτροκαρδιογράφος 12 απαγωγών

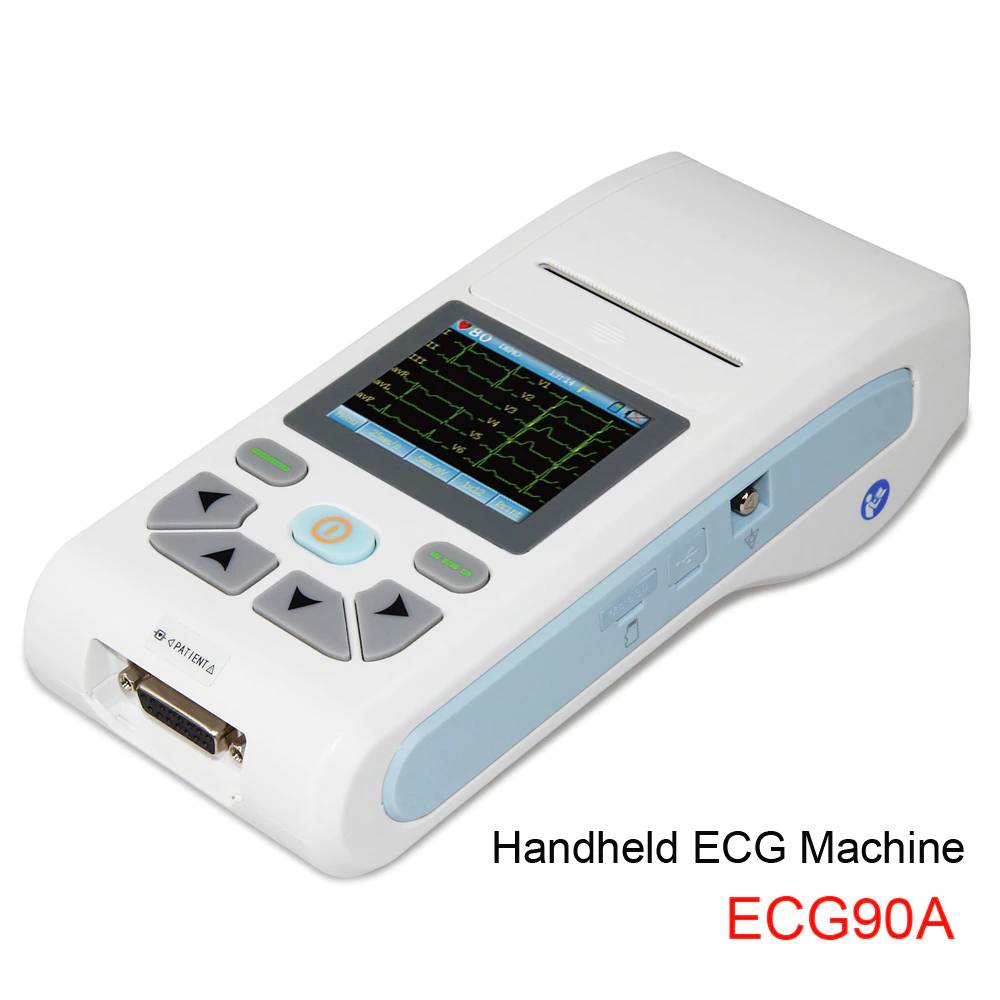

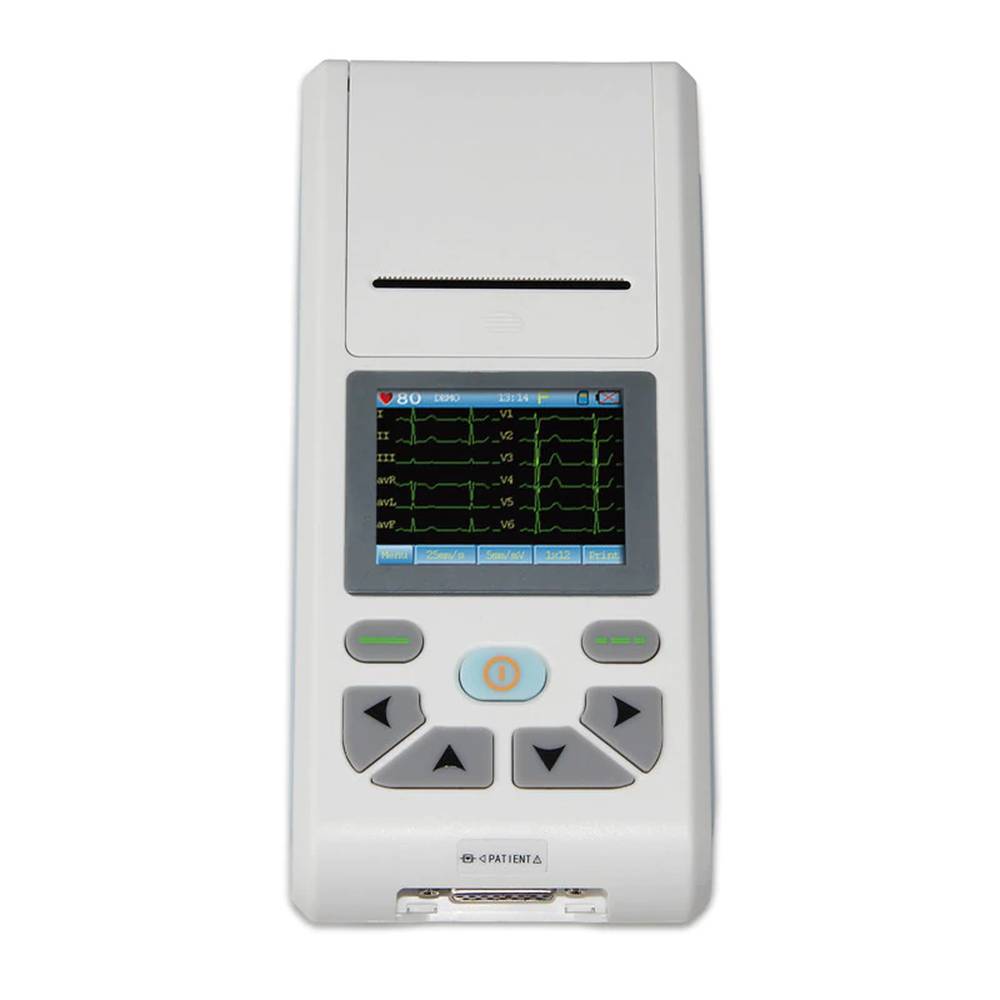

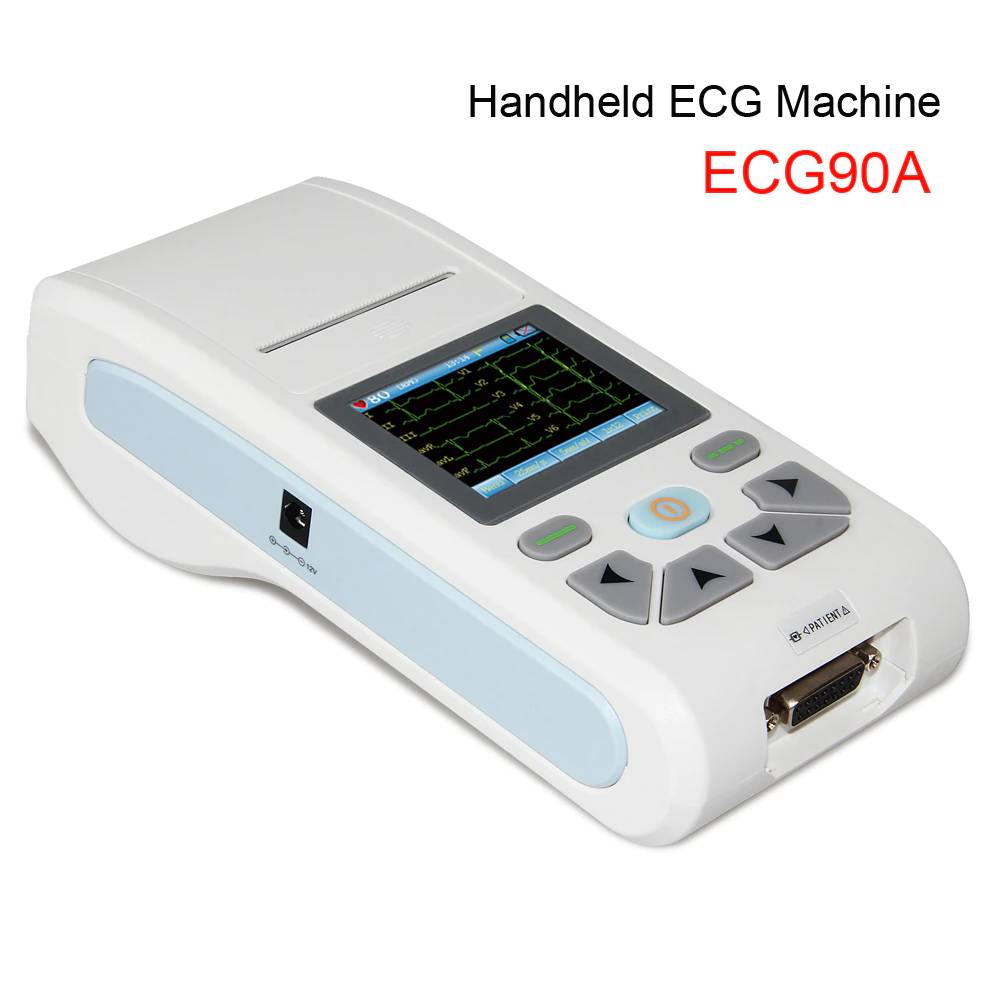

Contec ECG90A ECG Machine 3 Channel 12 Leads Electrocardiograph with Printer and PC Software

Φορητός τρικάναλος ηλεκτροκαρδιογράφος 12 απαγωγών

Εισαγωγή:

Ο ECG90A είναι ένας ηλεκτροκαρδιογράφος που μπορεί να συλλέξει σήματα ΗΚΓ 12 απαγωγών και να εκτυπώσει κυματομορφή μέσω του συστήματος θερμικής εκτύπωσης. Διαθέτει: εγγραφή και εμφάνιση κυματομορφής ΗΚΓ σε λειτουργία ΑΥΤΟΜΑΤΗ/Χειροκίνητη, μέτρηση και διάγνωση παραμέτρων κυματομορφής ΗΚΓ αυτόματα, προτροπή για "Αποσύνδεση" ή "Έλλειψη χαρτιού", διαχείριση βάσης δεδομένων περιπτώσεων κ.ά.

Σημείωση: Οι συσκευές που πωλούνται στις χώρες και τις περιοχές που διαθέτουν πιστοποίηση FDA δεν υποστηρίζουν τη λειτουργία αυτόματης ανάλυσης.

Function
1)Sync collection
for 12-lead ECG, adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.
2)Particular and high-accuracy digital filter eliminates baseline drift, no distortion to ECG waveform, greatly enhances anti-baseline drift capacity, convenient for waveform judgment.
3)Display of 1/3/6/12-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for contrastively diagnosing.
4)Real-time and continuously record clear and accurate ECG waveform and annotation character(including lead mark, sensitivity, paper speed and filter state, etc.).
5)Adopt high-resolution thermal printing system, no need for any adjustments. Recording frequency: up to 150 Hz.
6)With the functions of auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc. which reduces the doctor’s burden.
7)Optional SD card stores up to 100 cases, which is convenient for doctor to review case and statistic.
8)In review mode, case waveform stored can be checked, measurement parameter and diagnosis information can be automatically analyzed.
9)Multi- language(Chinese, English) interface and report.
10)Optional ECG-Sync software, connect with PC by USB2.0 interface to form a ECG workstation, import real-time data to the software for analyzing and report printing, and old cases stored in Electrocardiograph can be uploaded to PC.
11)Power supply: AC/DC and built-in rechargeable lithium battery. In optimal DC state, up to 4-hour standby time, continuous print 90-minute and 150-ECG, which meets the requirements of visiting a patient at home and body examination.

Performance
Input mode:
floating and defibrillation protection
Frequency response:
Rated input
amplitude Input frequency and waveform Relative output response
1.0 0.67Hz~40Hz, Sine wave ±10%a
0.5 40Hz~100Hz, Sine wave +10 %, -30 %a
0.25 100Hz~150Hz, Sine wave +10 %, -30 %a
0.5 150 Hz ~ 500 Hz, Sine wave +10 %, -100 %a
1.5 ≤1Hz,200ms, Triangle wave +0 %, -10 %b
a relative to 10Hz b relative to 200 ms
Time constant:≥ 3.2s
CMRR:
>105dB
Filter: power frequency(AC50/60 Hz), EMG(25 Hz/35 Hz (-3 dB)), baseline drift filter Recording way: thermal printing system

Specification
of recording paper: 50 mm(W)×20 m(L) high-speed thermal paper
Time base selection(paper speed): 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s, error: ±5%
Gain control(sensitivity): 2.5, 5, 10, 20 mm/mV, accuracy is ±2%;
Standard sensitivity: 10 mm/mV±0.2 mm/mV
Recording mode: auto mode, rhythm
mode and manual mode
Measurement parameters: HR, P-R interval, P Duration,
QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5),
S(V1), R(V5)+S(V1)
Safety classification: Class I, type CF
defibrillation-proof applied part
Polarization resistance voltage: ±610mV
Noise level: ≤12 µVp-p
ECG signal input sampling frequency: 32 kHz
Waveform data processing sampling frequency: 1 kHz
Sampling accuracy: 24-bit The minimum detection signal: 10 Hz, 20 µV(peak-peak value) deflected sinusoidal signal can be detected
Pacing detection channel: standard II
Accuracy of input signal: ±5%
Amplitude quantization: ≤5µV/LSB
Interchannel time deviation: <100 µs

Power supply:
AC: 100V~240V(50/60Hz)
DC: 7.4V/2000mAh rechargeable lithium battery
Degree of protection against ingress of liquid: IPX0
Working mode: continuous working

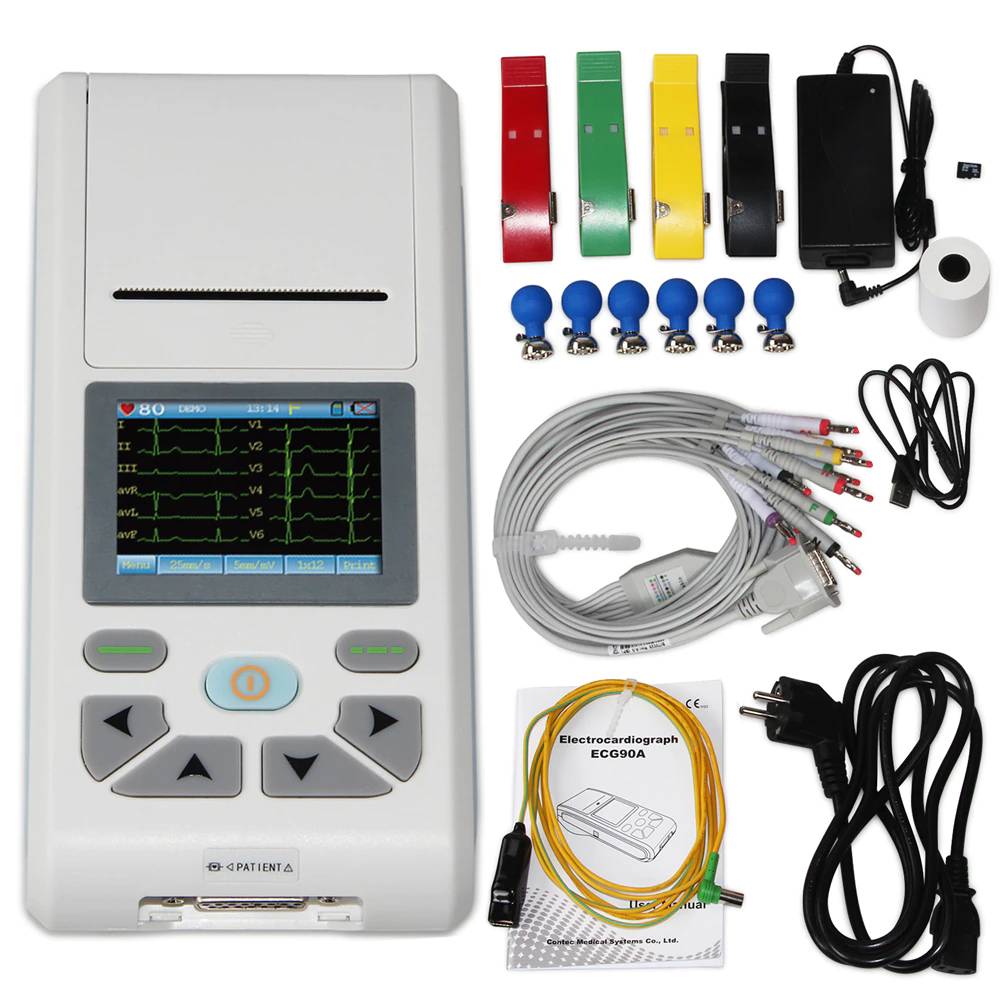

Accessories
Standard configuration:

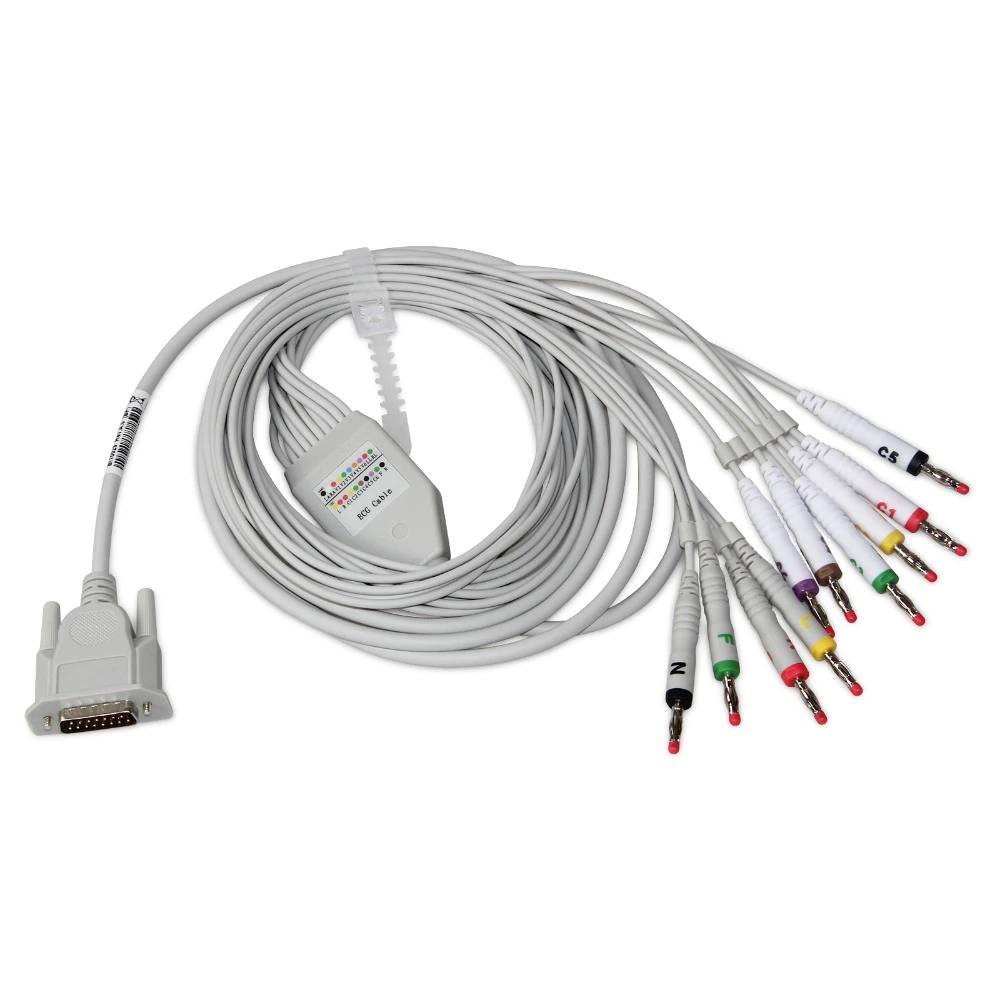

A lead cable
A limb electrode

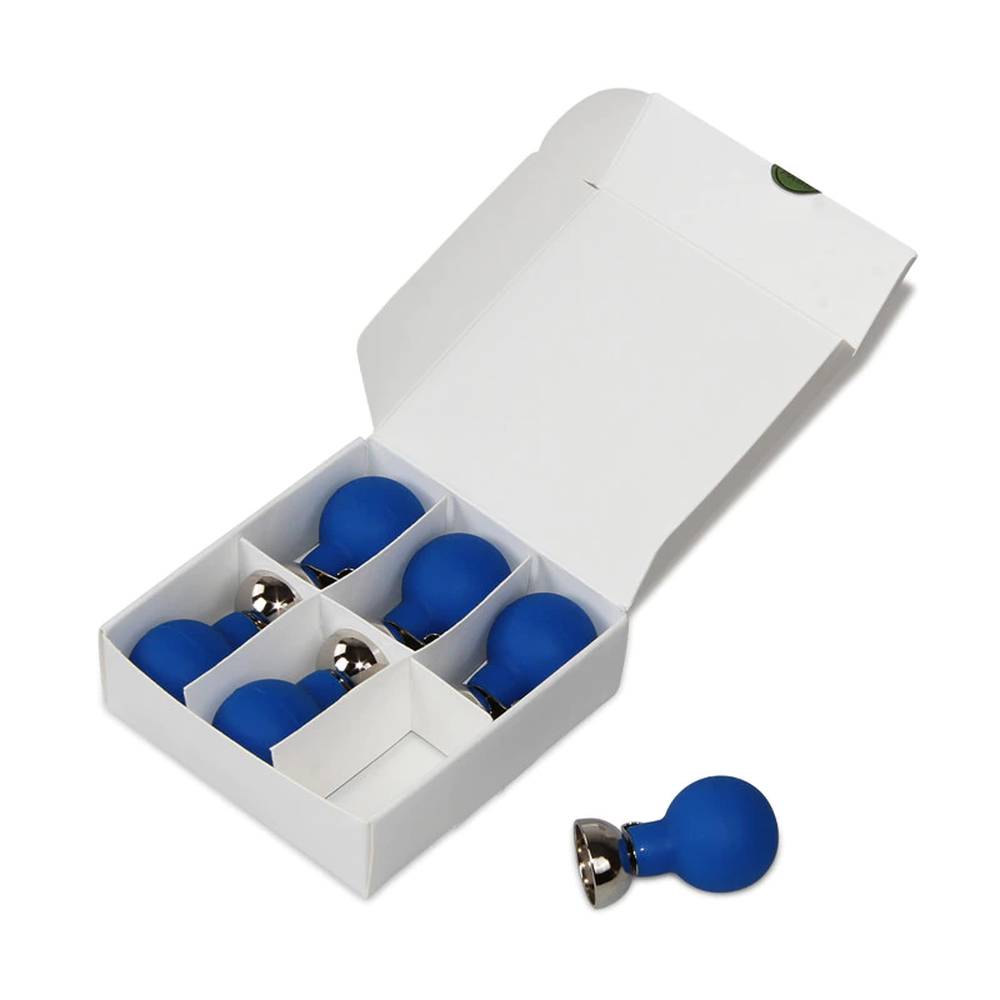

A chest electrode
A thermal recording paper
A power cord
An earth wire
A user manual (English)
A power adapter

Physical characteristic
Working environment Temperature: 5℃~40℃
Relative humidity: 25%~95%(non-condensing)
Atmospheric pressure: 700 hPa~1060 hPa
Transport and storage environment
Temperature: -20 ℃～+55 ℃
Relative humidity: ≤95%
Atmospheric pressure: 500 hPa~1060 hPa

ΣΗΜΕΙΩΣΗ:

Εξειδικευμένα προϊόντα, προϊόντα μικρής κυκλοφορίας και προϊόντα OEM συνήθως συνοδεύονται από εγχειρίδιο οδηγιών στην Αγγλική γλώσσα και όχι στην Ελληνική. Παρακαλούμε λάβετε υπόψιν σας το γεγονός αυτό πριν τοποθετήσετε την παραγγελία σας.
